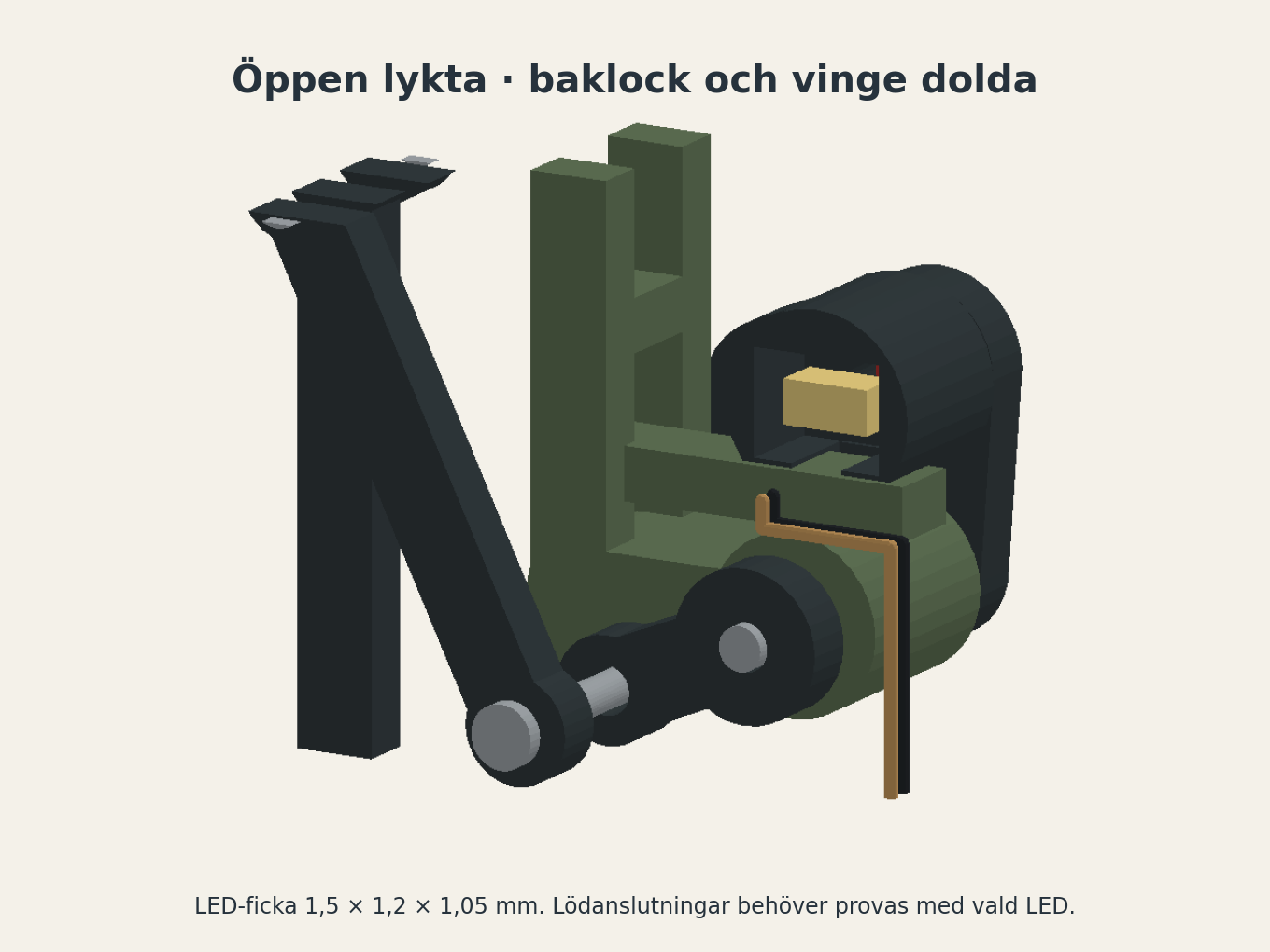

Inside the signal lantern · v0.2CAD inspection view with the rear cover removed.
Model details
Railway equipment · N scale · Revision v0.2 · Prototype
A mechanical signal designed to move, not merely stand still.
The DRG semaphore project explores a working N-scale signal with a moving blade, spectacle and counterweight linkage. The structure includes a servo envelope and provision for an LED.
Current revision
v0.2 contains 17 trial-print parts together with fixtures and hardware references.
Prototype scope
Moving blade, spectacle and counterweight linkage
Space reserved for servo actuation
Provision for signal lighting
The exact historical station installation has not been established
Verification status
Digital QA has been completed. The suggested 0.2 mm nozzle and 0.08–0.10 mm layers are trial settings only; no physical functional test has been recorded.
Before it reaches your workbench
A few useful things to know.
Is this a physical model?
No. This catalogue is for digital model files, not a printed kit. When a release is available, its listing will describe the files and documentation included in the download.
Which scale and printer should I use?
Check the model details and release notes for the available scales and tested print settings. Use a scale-specific version where supplied: small features and assembly clearances do not always work when a model is simply enlarged or reduced.
Does the picture show a finished print?
Model previews may be digital renders. Refer to the image description and release notes to distinguish a digital model from a physical print test. Development previews are not a promise that every part has been printed.
What should I keep after downloading?
Keep a backup of the original release package together with its version number, licence and assembly notes. Read the instructions before arranging the parts in your slicer.
